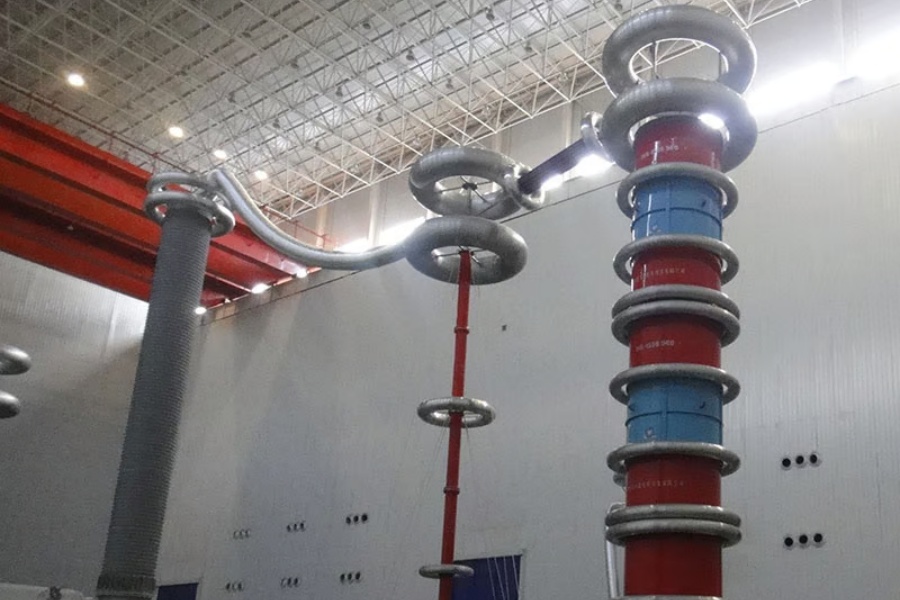

What is the power frequency AC withstand test??
The power frequency AC withstand test, also known as a high voltage test, is a crucial test that examines the ability of high voltage equipment to withstand electrical stress. The test is designed to ensure that the equipment, such as transformers, cables, and switchgear, is capable of operating safely and effectively under normal working conditions.
Why is the power frequency AC withstand test necessary?
The power frequency AC withstand test is necessary to ensure the integrity of electrical equipment. High voltage environments can lead to corona discharge, partial discharge, and other electrical stresses that can cause insulation failure. This can result in a range of hazardous situations, including electric shocks, equipment damage or failure, and even fire or explosion.
How does the power frequency AC withstand test work?
The power frequency AC withstand test works by subjecting the equipment to a high voltage for a specified time period while monitoring its performance. The test voltage and time duration depend on the specific equipment being tested and the safety standards it needs to meet. The test usually involves applying a voltage that is significantly higher than the equipment’s rated voltage, typically 1.5 times, for several minutes to detect any weaknesses in its insulation.
What are the different types of power frequency AC withstand tests?
There are two primary types of power frequency AC withstand tests: the one-minute test and the 60-minute test. The one-minute test is used for equipment that operates at very high voltages, typically exceeding 230 kV. The 60-minute test is used for equipment with a lower voltage rating, typically up to 230 kV. Both tests are designed to ensure that the equipment is capable of withstanding the electrical stresses it may encounter during operation.
What is the procedure for conducting the power frequency AC withstand test?
The procedure for conducting the power frequency AC withstand test involves several steps. First, the equipment to be tested is isolated from the power supply and any other connected equipment. Next, the test voltage is applied gradually to the equipment for the required duration. During the test, the performance of the equipment is monitored for any signs of insulation failure or other safety hazards. Finally, the test voltage is reduced gradually, and the equipment is reconnected to the power supply if it has passed the test.
What are the criteria for passing the power frequency AC withstand test?
The criteria for passing the power frequency AC withstand test depend on the applicable safety standards and the specific equipment being tested. In general, the equipment must be able to withstand the test voltage for the specified duration without showing any signs of insulation failure or other safety hazards. If the equipment passes the test, it is considered safe for operation under normal working conditions. If it fails the test, it may be repaired or replaced before being put into service.
What are the safety precautions for conducting the power frequency AC withstand test?
Conducting the power frequency AC withstand test can be dangerous if proper safety precautions are not followed. Some of the safety precautions that should be taken include grounding the equipment being tested, maintaining a safe distance from the equipment, and wearing appropriate personal protective equipment. The test should be conducted only by trained professionals who understand the risks and safety procedures involved.
What are the benefits of the power frequency AC withstand test?
The power frequency AC withstand test provides several benefits, including ensuring the safety and reliability of high voltage equipment and reducing the risk of equipment failure that can lead to costly downtime and repairs. By conducting regular testing, operators can identify potential problems before they cause a breakdown or other safety hazards.
How often should the power frequency AC withstand test be conducted?
The frequency of conducting the power frequency AC withstand test depends on the applicable safety standards and the specific equipment being tested. In general, it is recommended to conduct the test at least once every five years or after any major repairs or modifications to the equipment. Regular testing can help ensure the ongoing safety and reliability of the equipment.
In conclusion
The power frequency AC withstand test is a crucial test that ensures the safety and reliability of high voltage equipment. By subjecting the equipment to high voltage stresses, operators can identify any potential weaknesses in its insulation and take necessary corrective action. Conducting regular testing can help ensure the ongoing safety and reliability of the equipment and reduce the risk of downtime and repairs.
