Automatic 12kV C & Dissipation Factor Test Set

Product Introduction

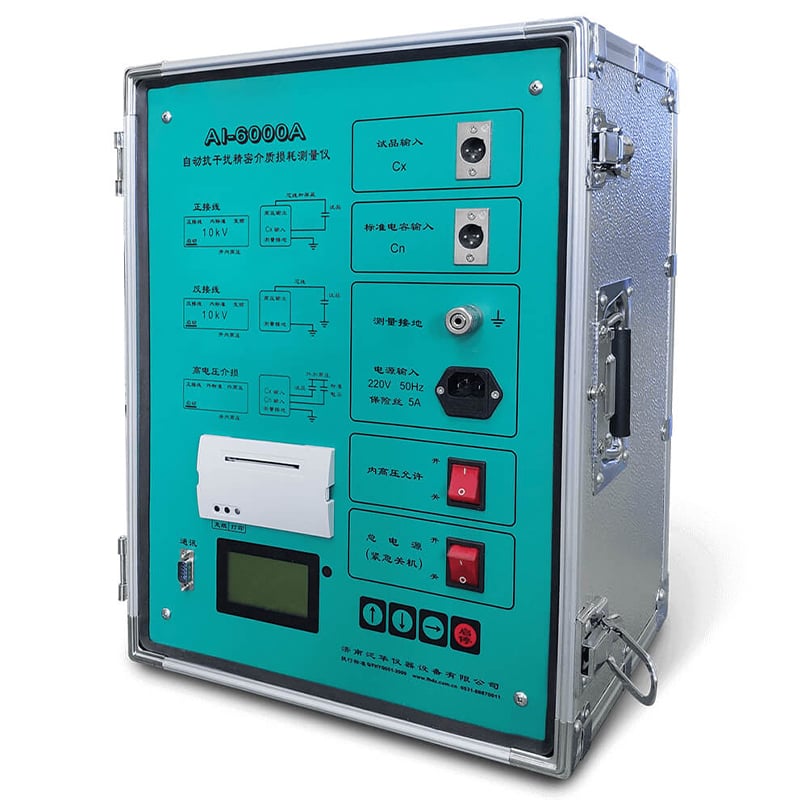

AI-6000A Automatic 12kV Capacitance & Dissipation Factor Test Set is designed to measure dissipation or power factor in heavy electromagnetic interference environment such as in power plants or substations. Also it can be used in laboratory for high accurate test. The test set is all-in-one structure: including precision digital bridge, 12kV/200mA frequency conversion power unit, reference capacitor (CN), and other electronic circuits. An external power supply can expand the test range. True portability is realized by the lightweight. Simple usage is realized by the full automation. High performance is realized by the digital process.

Product Features

▪ Interference Suppression：
The AI-6000A has advanced interference suppression circuit based on the frequency conversion and digital filter technique, the ratio of interference current to specimen current is 2:1(200%).

▪ High Accuracy：
Normally the accuracy of dissipation factor under no-interference environment is better than 0.00010.

▪ Safe Protection：
Output Protection, Input Protection, Poor Grounded Protection, Fault Protection, No voltage overshoot, etc

▪ Multiple Functions：
a)Basic test modes.
b)Use an external power supply.
c)Test at more higher voltage.
d)All test work will be done automatically after start the set.
