    Product Introduction

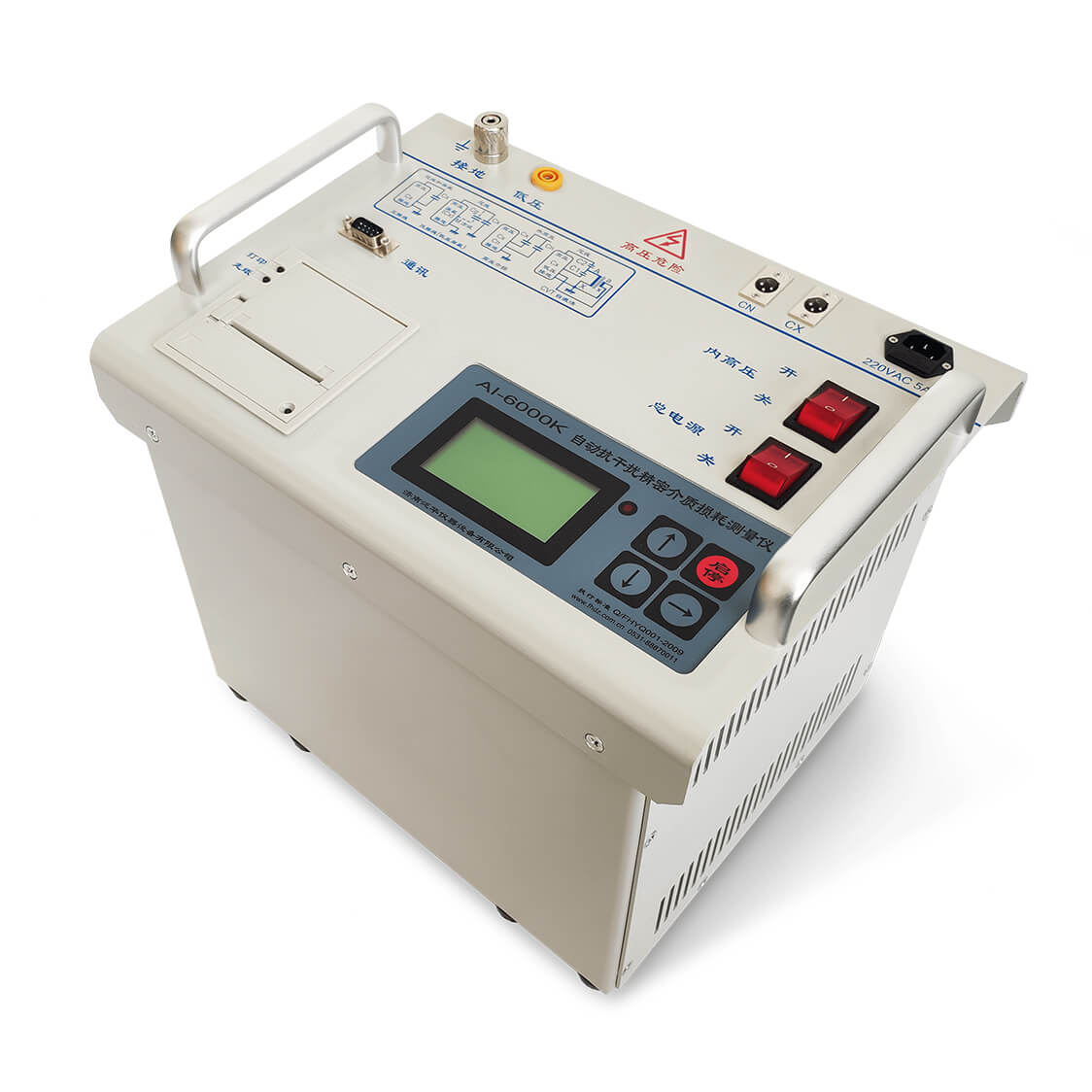

    AI-6000K Automatic Capacitance & Dissipation Factor Test Set is designed to measure dissipation or power factor in heavy electromagnetic interference environment such as in power plants or substations. Also it can be used in laboratory for high accurate test. The test set is all-in-one structure: including precision digital bridge, 12kV/200mA frequency conversion power unit, reference capacitor (Cn), and other electronic circuits. An external power supply can expand the test range. True portability is realized by the lightweight. Simple usage is realized by the full automation. High performance is realized by the digital process.

    Product Features

     Interference Suppression
    The AI-6000K has advanced interference suppression circuit based on the frequency conversion and digital filter technique, the ratio of interference current to specimen current is 2:1(200%).

     High Accuracy
    Normally the accuracy of dissipation factor under no-interference environment is better than 0.00010.

     Safe Protection
    Output Protection, Input Protection, Grounded Protection, CVT, Fault Protection, No voltage overshoot, Pulse hint, etc

     Multiple Functions
    a)Basic test modes.
    b)Use an external power supply.
    c)Test at more higher voltage.
    d)All test work will be done automatically after start the set.

    Technical Parameter

    Accuracy

    Cx: ±( reading×1%+1pF )

    DF tgδ: ±( reading×1%+0.00040 )

    PF cosφ: ±( reading×1%+0.00040 )

    Interference

    Ratio of interference current to specimen current is 2:1 ( 200% )

    Capacitance Range

    Internal HV : 3pF~60000pF / 12kV, 60pF~1.2uF / 0.5kV

    External HV : 3pF~1.5uF / 12kV, 60pF~30μF / 0.5kV

    Resolution : 0.001pF, 4 digitals

    tgδ Range

    No limit, Resolution 0.001% ( C/L/R specimen is automatic recognized )

    Input current range

    10μA~5A

    Internal HV

    0.5~12kV / 200mA ( max )

    Accuracy: ± ( reading×1%+10V )

    Control mode: Rise or fall smoothly

    Frequency: 45Hz ~ 65Hz single frequency, 50±1Hz, 60±1Hz dual frequency

    External HV

    UST: 5A max, GST: 12kV/5A max, 38-72Hz

    Internal LV output for CVT mode

    voltage range 3V~50V; current range 3A~30A

    CVT Ratio

    Ratio Range: 10~99999, Ratio Accuracy: ±reading×1%

    Phase Range: 0~359.999°, Phase Accuracy: ±0.02°

    Test Time

    30s typical ( may vary in different test mode )

    Power Supply

    95V~130V,180V~260V,50Hz/60Hz ( 1 phase power supply or generator )

    Display

    128*64 dot matrix

    Printer

    Thermal printer

    Communication Port

    RS-232

    Operating Temperature

    -10℃~50

    Storage Temperature

    -20℃~60

    Humidity

    <90% non-condensing

    Dimensions

    34cm( L )*26cm( W )*27cm( H )

    Weight

    Main unit: 22kg , cables: 3.5kg
