Model: YDTW / YDTCW
Voltage Rating: 50kV-2400kV
Current Rating: 0.1A-5A
Use location: Indoor

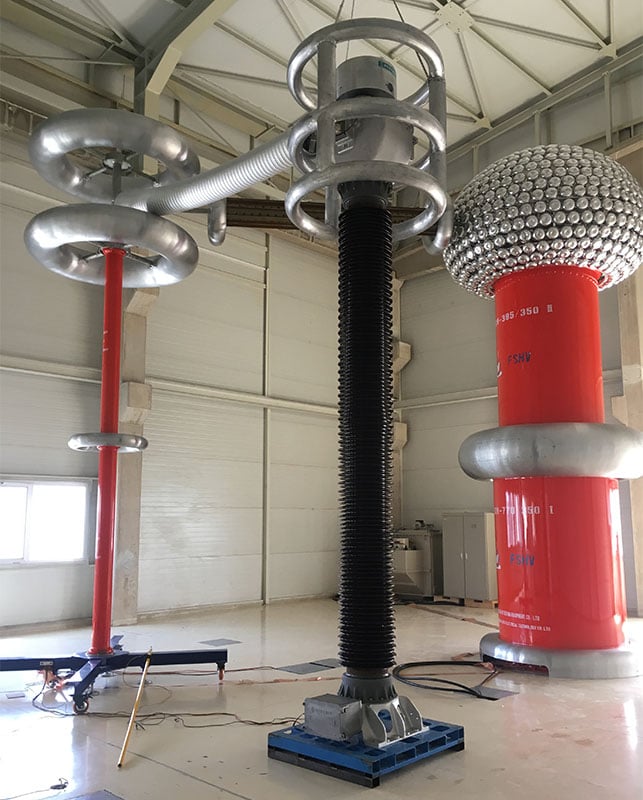

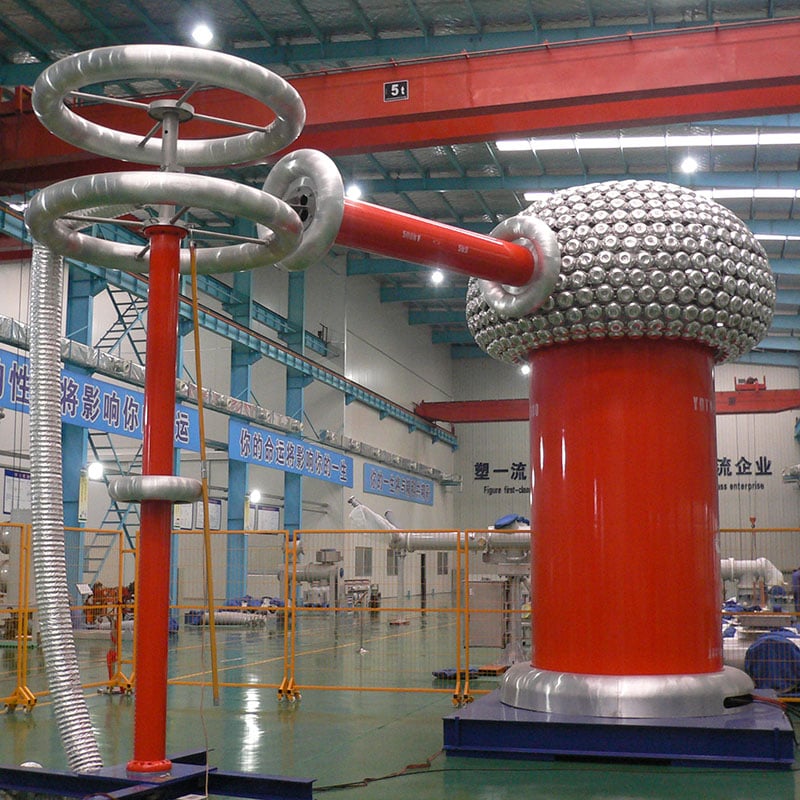

The test transformers are installed in an insulating cylinder shell and are oil-cooled, they are well suited for single operation and operation in series connection (cascading), so called modular type, designed for testing all types of high voltage electrical insulation, test voltage up to 2400kV.
HVAC test systems based on cylinder modular type transformer are intended to generate a continuously variable AC test voltage at power frequency, they are the basic testing equipment for all multi-purpose HV test fields and laboratorie.

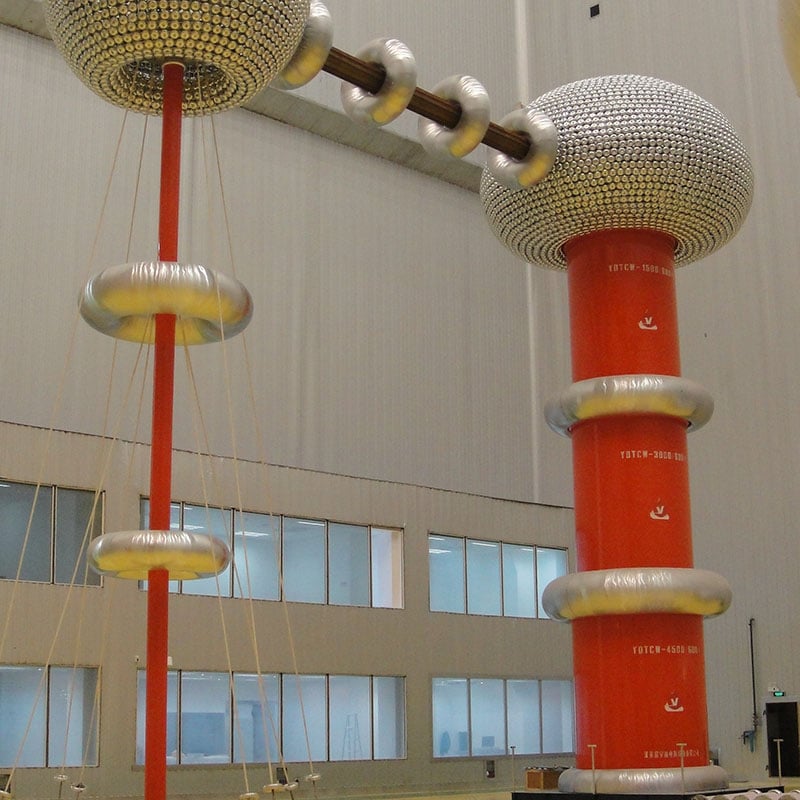

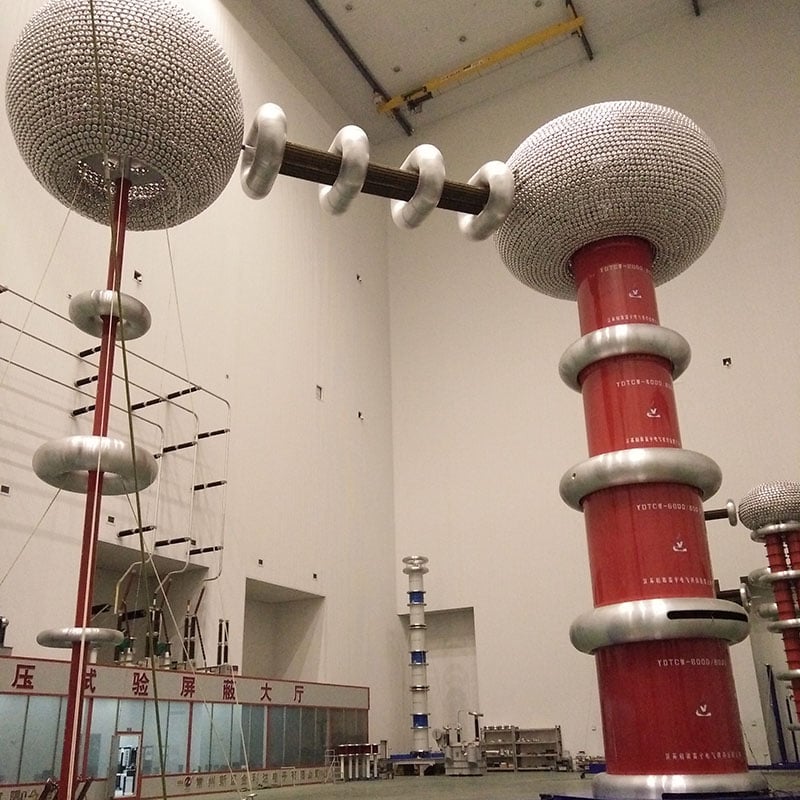

The possibility of stacking several of these transformer modules allows reaching very high voltage levels by keeping reasonable floor space. Rated voltage of single module can be up to 750kV, we have successfully experienced 2400kV test transformer by four modules cascaded.
AC voltage test systems with transformer design are used to test high voltage products (like high voltage cables, power transformers, GIS), components (bushings, arresters), and insulating materials. They can be used in a variety of applications, such as routine, type testing, in particular, wet testing, also indoor / outdoor testing, on-site testing.
Some applications are
