    FIVESTAR HV TESTING EQUIPMENT, operating in the electricity industry, specializes in developing and providing high-voltage testing equipment, including AC Dielectric, HV DC Voltage, Impulse Voltage, Impulse current and other special tests. We offer comprehensive solutions for research, manufacturing, or maintenance purposes.

     Technical Parameters

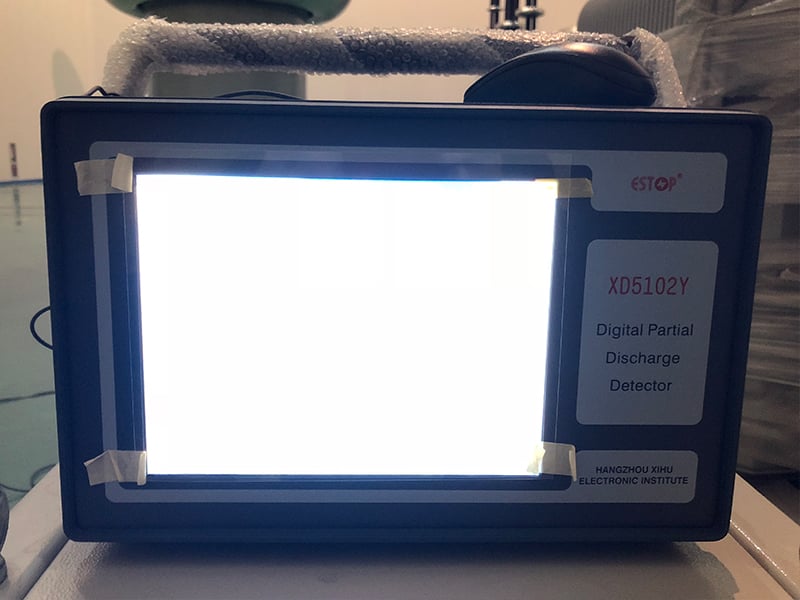

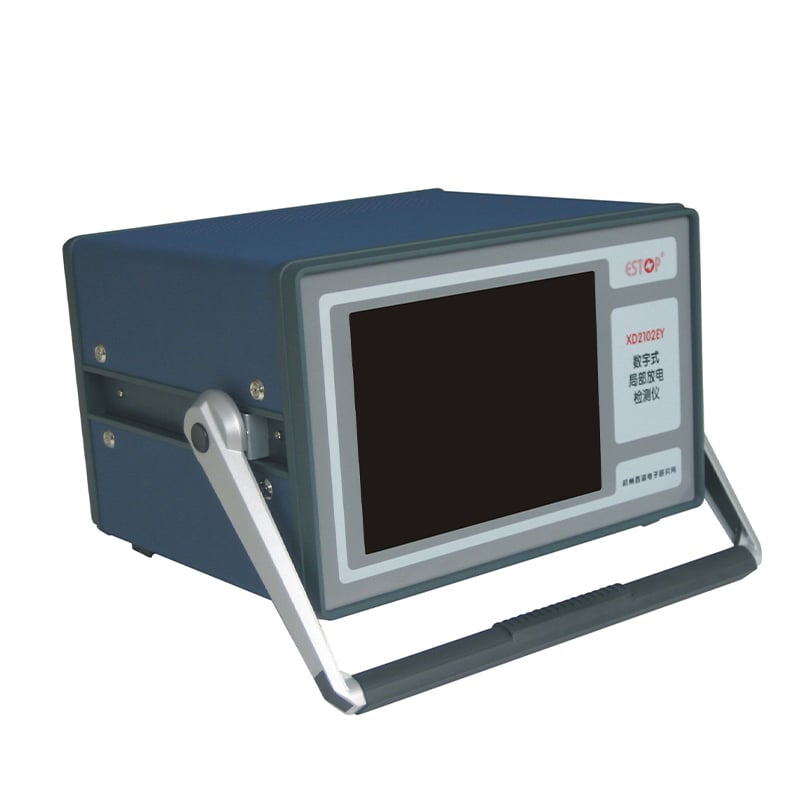

    • Model: XD-5102
    • Channels: 2
    • Detection sensitivity:  ≤0.1pC.
    • The basic error of apparent discharge Q:

    Linearity error: ≤±5%+0.1pC

    Range shift error:  ≤±5%+0.1pC

    Low repetion rate impulse response error: ≤±5%

    Asymmetry of positive and negative impulse response error: ≤±5%

    • Sampling accuracy:  12Bit.
    • Pulse resolution time: <100μs.
    • Testing frequency band :

    3dB bandwidth 10~1000kHz

    Lower limit 10k, 20k, 40k, 80kHz

    Upper limit 100k, 200k, 300k, 500k, 1000kHz.

    • Gain: -20~40dB, 4 gears, have corse and fine tuning.
    • Stability: after 8hr continuous dury, inject same calibrate signal, the pulse response change should not bigger than±3%
    • Synchronization mode: wired, wireless, frequency 30~300Hz
    • Input voltage AC10~220V, voltage detection: effective value, 10 digit A/D accuracy.
